Catalog

I. Flo-Guard System Kits:

1. Manual Kits   Basic system with manual switch activation only to turn on or off the main water supply.





Part Number



Description

List/Retail

Price



Notes

FG-1M

Manual Kit ¾ NPT Valve

$548.00

For most small to medium dwellings

FG-2M

Manual Kit 1 NPT Valve

$557.00

FG-3M

Manual Kit 1 1/2 NPT Valve

$1,033.00

For most medium to large dwellings;

or commercial applications

FG-4M

Manual Kit 2 NPT Valve

$1,353.00

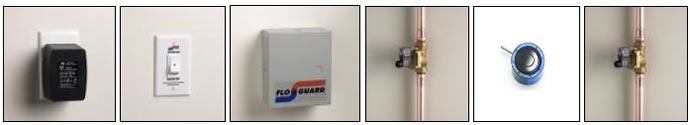

Kit Includes 110/24 volt A/C transformer, N/C water control valve, switch assembly (switch, wall plate, retro-fit bracket, wall plate label, alarm panel label), 150 foot cable, installation and owner manual, warranty registration card).



2. Standard Kits   Typical system with Building Systems Interface (controller) to provide delay, bypass, and other functions in addition to manual activation to turn on or off the main water supply.





Part Number



Description

List/Retail

Price



Notes

FG-1

Standard Kit ¾ NPT Valve

$717.00

For most small to medium dwellings

FG-2

Standard Kit 1 NPT Valve

$748.00

FG-3

Standard Kit 1 ½ NPT Valve

$1,240.00

For most medium to large dwellings; or commercial and commercial applications

FG-4

Standard Kit 2 Valve

$1,584.00

FG-5

Standard Kit No Valve

$538.00

For industrial applications; valve purchased separately

Kit Includes 110/24 volt A/C transformer, Building System Interface (controller), battery, N/C water control valve, switch assembly (switch, wall plate, retro-fit bracket, wall plate label, alarm panel label), 150 foot cable, installation and owner manual, warranty registration card).



3. Automatic Kits Standard Kit with the addition of a water sensor to turn on or  off the main water supply.





Part Number



Description

List/Retail

Price



Notes

FG-1A

Automatic Kit ¾ NPT Valve

$852.00

For most small to medium dwellings

FG-2A

Automatic Kit 1 NPT Valve

$885.00

FG-3A

Automatic Kit 1 ½ NPT Valve

$1,412.00

For most medium to large dwellings; or commercial and commercial applications

FG-4A

Automatic Kit 2 Valve

$1,781.00

FG-5A

Automatic Kit No Valve

$659.00

For industrial applications; valve purchased separately

Kit Includes 110/24 volt A/C transformer, Building System Interface (controller), battery, N/C water control valve, switch assembly (switch, wall plate, retro-fit bracket, wall plate label, alarm panel label), 150 foot cable, 24 volt A/C water sensor (powered by BSI), installation and owner manual, warranty registration card).



4. Cottage Kits   Standard Kit with the addition of water sensor to turn on or off the main water supply, and a normally open (N/O) valve (works simultaneously with the N/C valve to drain the domestic water system).





Part Number



Description

List/Retail

Price



Notes

FG-1C

Cottage Kit ¾ NPT Valve

$1,272.00

For most small to medium dwellings

FG-2C

Cottage Kit 1 NPT Valve

$1,378.00

FG-3C

Cottage Kit 1 ½ NPT Valve

$2,240.00

For most medium to large dwellings; or commercial and commercial applications

FG-4C

Cottage Kit 2 Valve

$3,212.00



Kit Includes 110/24 volt A/C transformer, Building System Interface (controller), battery, N/C water control valve, N/O water control valve, switch assembly (switch, wall plate, retro-fit bracket, wall plate label, alarm panel label), 150 foot cable, 24 volt A/C water sensor, installation and owner manual, warranty registration card).




II. Optional and Service Parts:



Part Number



Description

List/Retail

Price

Notes and

Specification

BSI-1

Building Systems Interface

$263.00

For delay, bypass, multiple valve, and sensor functions

T-1

Transformer
(2" x 3" x 2")

$47.00

Plug-in 120/24VAC; 40VA; 2 amp slow blow fuse; UL, CSA listed

E-1

Weather-proof (NEMA 4/4x) Enclosure

$66.00

NEMA 4/4X rated; IP66 rated; molded knockouts

B-1

Battery
(3" x 3" x 2")

$46.00

12VDC; 4 Ah; sealed/non-spillable; rechargeable lead-acid

SA-1

Switch assembly (see above)
(2" x 3" x 1.5")

$36.00

Single pole; 10A/240VAC; 24VAC incandescent blue lamp; UL/CSA listed

L-1

Wall plate label

$6.00

N/A

L-2

Alarm panel label

$6.00

N/A

F-1

Float switch for siphon sump pump (2.5" dia. X 3")

$103.00

UL/CSA listed; sealed/mercury activated; wide angle; 10 ft. cord

V-1

3/4" water control valve - N/C
(2.5" x 3" x 2.5")

$199.00

24VAC, 6W, UL, CE listed; 100% duty rated; max. 175 psi/5 psi delta; Cv 10.53; 2% leaded brass; nitrile seals approved to BS6920:2000; DIN plug; manual bypass; water hammer free

V-2

1" water control valve - N/C
(3.5" x 3.5" x 3.5")

$233.00

24VAC, 6W, UL, CE listed; 100% duty rated; max. 175 psi/5 psi delta; Cv 12.87; 2% leaded brass; nitrile seals approved to BS6920:2000; DIN plug; manual bypass; water hammer free

V-3

1 1/2" water control valve - N/C
(5" x 5" x 5")

$359.00

24VAC, 12W, UL, CSA, CE listed; 100% duty rated; max. 145 psi; Cv 23.3; less than 4% leaded brass; FPM seals approved to Title 21, Paragraph 177.2600 (FDA); DIN plug; manual bypass; adjustable speed; water hammer free

V-4

2" water control valve - N/C
(5.5" x 6" x 5.5")

$460.00

24VAC, 12W, UL, CSA, CE listed; 100% duty rated; max. 145 psi; Cv 46.6; less than 4% leaded brass, FPM seals approved to Title 21, Paragraph 177.2600 (FDA); DIN plug; manual bypass; adjustable speed; water hammer free

V-5

Special valve - N/C

TBD

Contact Flo-Guard for details

S-1

Water Sensor - Wetswitch

$110.00

Hard-wired (4 wire); single channel; 24 VAC powered from BSI

S-2

Water Sensor - GRI 2650

$66.00

Hard-wired (4 wire); single channel; 24 VAC powered from BSI

S-3

Water Sensor - Waterbug WB-200

$168.00

Hard-wired (4 wire); single channel; 24 VAC powered from BSI

S-4

Water Sensor - GRI 2826

$92.00

Hard-wired (2 wire or use with wireless transmitter); single channel; self powered (3 to 5 year life)

S-5

Water Sensor Monitor & 4 Sensors
Waterbug WB-800

$569.00

Hard-wired (4 wire); one to eight channels; 24 VAC powered from BSI

S-6

Water Sensor Monitor & 2 Sensors
GRI 2826FS

$110.00

Hard-wired (2 wire or use with wireless transmitter); two channel; self powered (3 to 5 year life

TX-1

Wireless Transmitter
Inovonics FA210

$137.00

Single channel; self powered (3 to 5 year life); use with self powered water sensors; works with single or four channel receiver

RX-1

Wireless Receiver
Inovonics FA401R

$241.00

Single channel; 12 VDC powered; works with single channel transmitter

RX-2

Wireless Receiver
Inovonics FA404R

$282.00

Four channel; 12 VDC powered; works with single channel transmitters

C-1

Additional cable - 150 ft.

 $100.00

18 gage; 4 conductor

BV-1

3/4" water control ball-valve
(4" x 6.5" x 7.8")

$485.00

Full port; 12VDC, 6W, UL, CE listed; max. 1000 psi; Cv 51; manual bypass; NEMA 6P enclosure; adapter to BSI needed

BV-2

1" water control ball-valve
(4" x 6.5" x 7.8")

$571.00

 Full port; 12VDC, 6W, UL, CE listed; max. 1000 psi; Cv 68; manual bypass; NEMA 6P enclosure; adapter to BSI needed

BV-3

1 1/2" water control ball-valve
(5.5" x 7.5" x 10")

$766.00

Full port; 12VDC, 6W, UL, CE listed; max. 1000 psi; Cv 170; manual bypass; NEMA 6P enclosure; adapter to BSI needed

BV-4

2" water control ball-valve
(5.5" x 7.5" x 10")

$880.00

Full port; 12VDC, 6W, UL, CE listed; max. 1000 psi; Cv 376; manual bypass; NEMA 6P enclosure; adapter to BSI needed

V-1NO

3/4" water control valve - N/O

TBD



V-2NO

1" water control valve - N/O

TBD



V-3NO

1 1/2" water control valve - N/O

TBD



V-4NO

2" water control valve - N/O

TBD



V-5NO

Special valve - N/O

TBD



W-1

Wire nut - 2 x 18 AWG

$1.00



Notes:

1. Prices effective 1/1/07 12/31/07.

2. All prices are in US dollars.

3. Prices exclude shipping.

4. Manual systems can be upgraded with the addition of the Building Systems Interface (BSI) purchased separately to add delay and bypass functions.

5. For dwellings supplied by a well, it is recommended that a Flo-Guard Automatic System be used to protect against potential leaks at the pressure tank.
